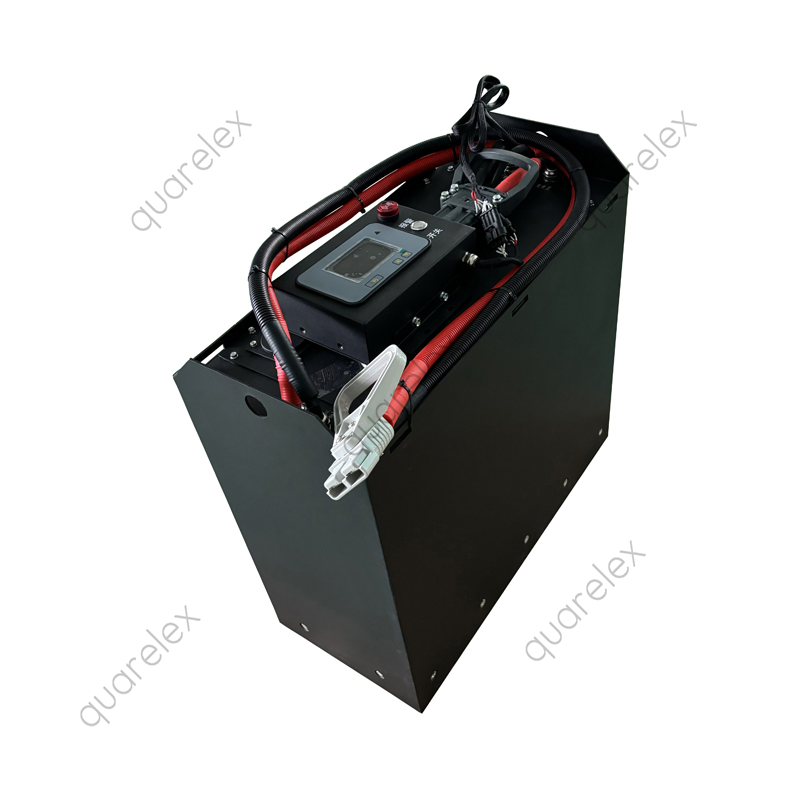

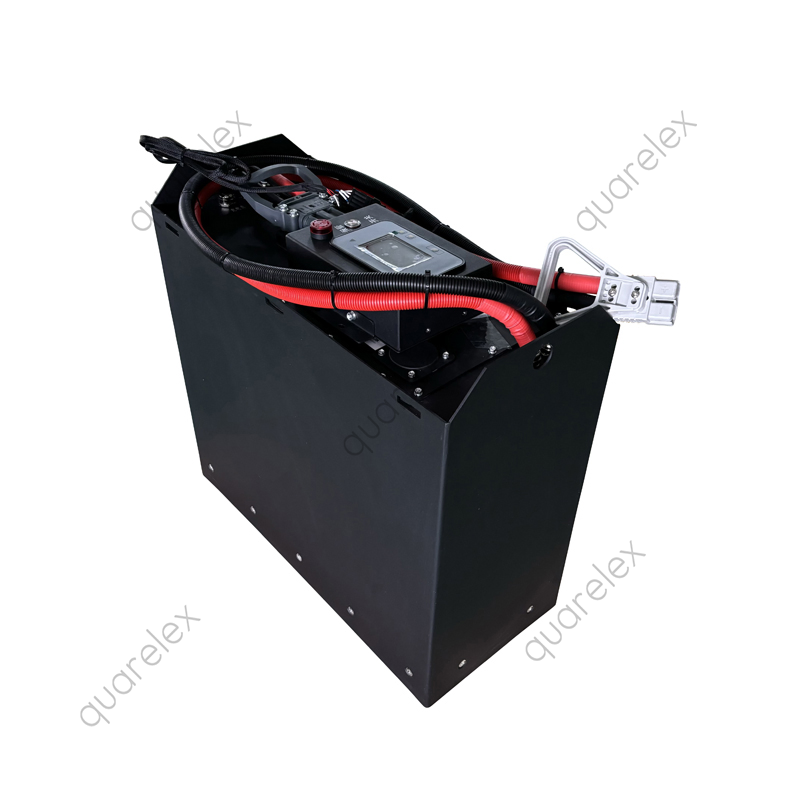

24V 230Ah Forklift Lithium-ion(LiFePO4) Battery
    Publish time 2025-10-09 16:41
24V 230Ah Forklift Lithium-ion(LiFePO4) Battery




Key Features


Grade A Prismatic LiFePO4 Cells

24V 230Ah forklift power battery comes with brand new grade A Lithium Iron Phosphate (LiFePO4) from tier-one cells manufacturers, like EVE, Lishen, Gotion etc.


High Power PDU

All quarelex forklift lithium power batteries are equipped with high power PDU(Power Distribution Unit) which has integrated BMS(Battery Management System), high current replay, shunt, 4G module, fuse, balancer, CAN communication, etc.

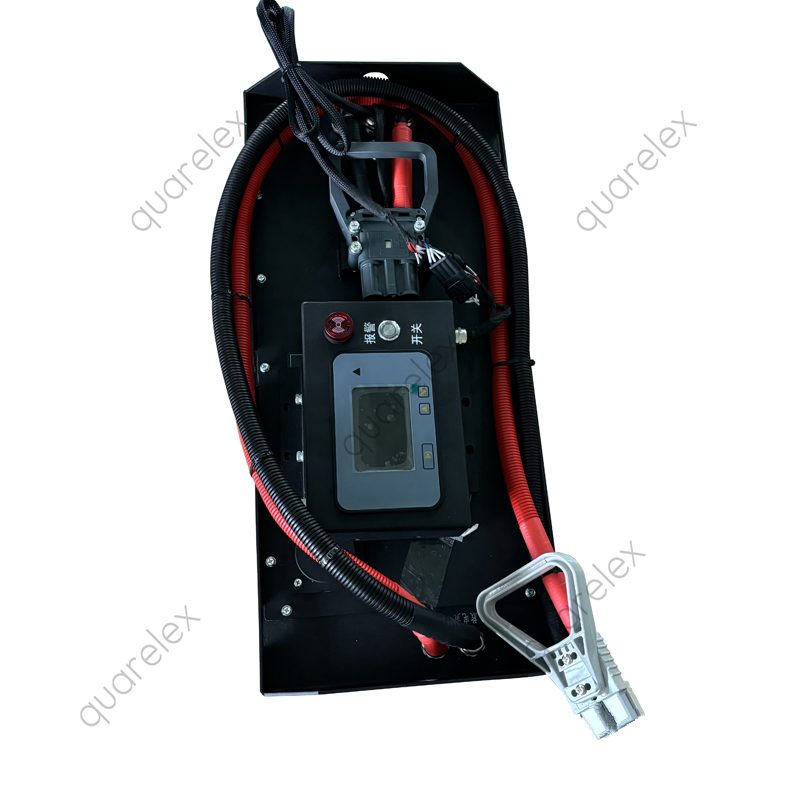

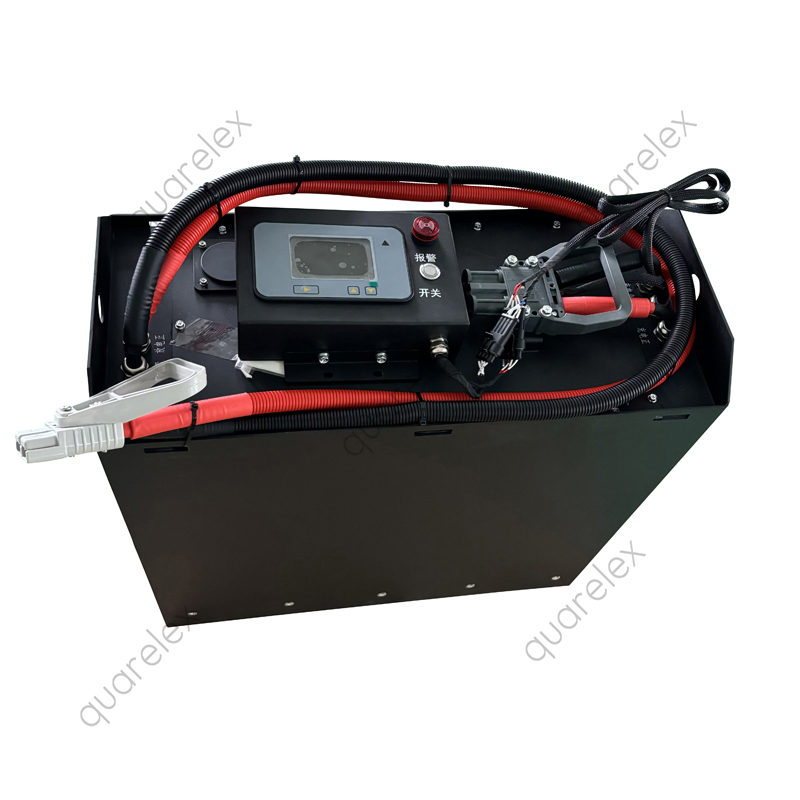

On-board LCD Touch Screen

LCD touch screen directly connected to PDU allows operator to monitor the real-time data of the battery, including pack voltage, current, SOC(State Of Charge), cells voltage, temperature, alarm, etc. Operator can also switch on/off the battery by the screen.


Full-range Protection

Overcharge, Over-discharge, Over voltage, Under voltage, Over current, Short Circuit, Over temperature, Under temperature, etc.


Fast Charging

LiFePO4 forklift batteries can be fully charged as fast as within 1 hour, and do not need long cool-down time like lead-acid battery.


Maintenance Free

LiFePO4 forklift batteries do not need regular maintenance like lead-acid batteries.




Key Specifications


Nominal Voltage: 25.6V

Capacity: 230Ah

Rated Energy: 5.89 kWh

Dimensions: Standard or Customizable

IP Grade: IP65

Cell Chemistry: Lithium Iron Phosphate (LiFePO4)

Remote Monitoring: 4G Optional

Lifespan: >3500 cycles @80% DoD, 25°C(77°F), 0.5C

Warranty: 5 years


ModelQL24-150QL24-173 T/SQL24-202 T/SQL24-230
Electrical
Nominal Voltage 25.6 V
Operation Voltage20 - 29.2 V
Rated Capacity150 Ah173 Ah 202 Ah230 Ah
Rated Energy3.84 kWh4.43 kWh5.17 kWh5.89 kWh
Suggested DoD< 90%
Max DoD100%
Self-Discharge< 3% per Month
Cells TypeLiFePO4 Prismatic
Cell Model3.2 V 150 Ah 3.2 V 173 Ah 3.2 V 202 Ah 3.2 V 230 Ah
Cells Configuration8S1P8S1P8S1P8S1P
Balancing60 mA, Passive Balancing
Charge
Charge Voltage28.8 V
BMS Charge Voltage Cut-Off28.8 V
Recommended Charge Current< 75 A< 85 A< 100 A< 115 A
Max. Continuous Charge Current150 A170 A 200 A230 A
Charge Temperature0 - 55 °C (32 - 131 °F)
Discharge
Recommended Discharge Current< 75A< 85A< 100A< 115A
Max. Continuous Discharge Current100 A100 A 200 A200 A
Peak Discharge Current300 A @ 30S300 A @ 30S 400 A @ 30S400 A @ 30S
Recommended Low Voltage Cut-Off23.2 V
BMS Discharge Voltage Cut-Off20 V
Discharge Temperature-20 - 60 °C (-4 - 140 °F)
Mechanical
Dimensions620 * 190 * 520 mm
(24.41 * 7.48 * 20.47 inch)		T: 740 * 170 * 520 mm
(29.13 * 6.69 * 20.47 inch)

S: 790 * 200 * 460 mm
(31.1 * 7.87 * 18.11 inch)		T: 740 * 170 * 520 mm
(29.13 * 6.69 * 20.47 inch)

S: 790 * 200 * 460 mm
(31.1 * 7.87 * 18.11 inch)		620 * 190 * 520 mm
(24.41 * 7.48 * 20.47 inch)
Weight60 kg (132.28 lbs)69 kg (152.12 lbs)77 kg (169.76 lbs)79 kg (174.17 lbs)
Terminal TypeCharge: REMA, Discharge: Anderson
Case MaterialPowder Coated Steel
Enclosure ProtectionIP65
Communication
LCD ScreenYesYesYesYes
BluetoothNoNoNoNo
CANYesYesYesYes
4GOptionalOptionalOptionalOptional
WiFiOptionalOptionalOptionalOptional
Safety And Warranty
Protection FunctionOvercharge, Over-discharge, Over current, Short Circuit, Over Temperature, Under Temperature
Storage0 - 40 °C (32 - 104 °F), < RH 80%, > 60% SOC
Warranty5 Years
Lifespan10 years or 3500 Cycles @ 25°C, 80% EOL
CertificatesCE, RoHS, UN38.3, IEC, MSDS

1. All specifications shown above are subject to change during products improving at any time without prior notice.

2. For other batteries not listed above, customization is also available.
