8-12KW Three Phase Hybrid Inverter
    Publish time 2025-10-09 16:41

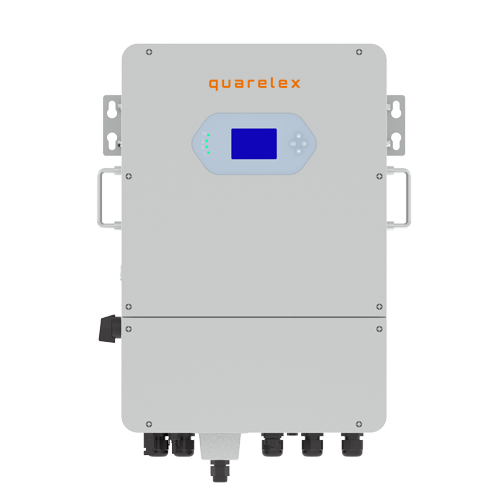

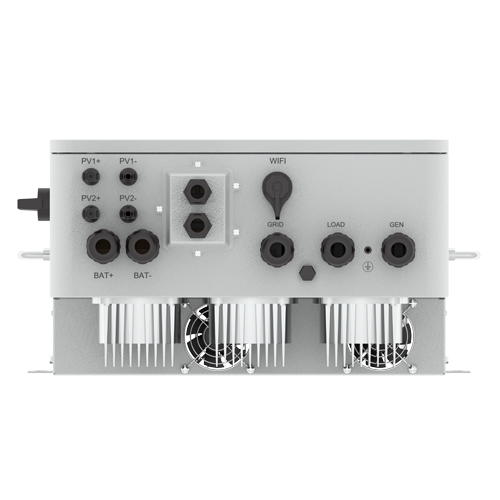

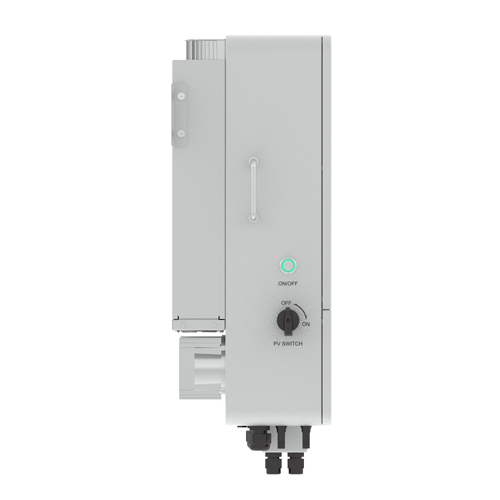

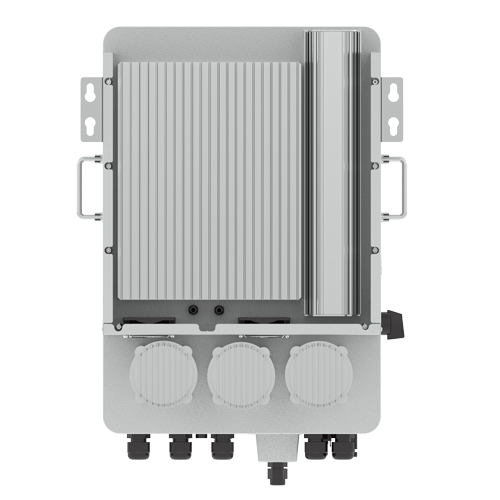

8-12KW Three Phase Hybrid Inverter




Key Features


AC Coupling

AC coupling to retrofit existing grid-tie solar system


Built-in MPPTs

Up to 3 MPPTs, Max. charging/discharging current up to 240A


Unbalanced Output

100% unbalanced output, each phase; Max. output up to 50% rated power


Parallel

Max. 12 pcs in Parallel


Time of Use

6 time periods for battery charging/discharging


Wi-Fi Monitoring

Integrated communication interfaces including RS485, CAN, and WiFi (via App/PC Cloud monitoring)


Seamless Switch

On-grid to off-grid switching less than 10 ms


Smart Load

Smart load management, CT sensing, ATS support, and optional GPRS module for remote connectivity.


Paralleled Battery

Support multiple batteries in parallel


Touch Screen

Color touch screen for easy configuration


IP65

Whole inverter unit is rated with IP65 protection grade


Generator Compatible

Support auto-starting generator and storing energy from diesel generator




Key Specifications


Nominal AC Voltage: 3L/N/PE 220/380Vac,230/400Vac, 50/60Hz

Battery Voltage: 40-60Vdc

Max PV Input Voltage: 800Vdc

MPPT Input Voltage Range: 200 - 650Vdc

IP Grade: IP65

Remote Monitoring: Wi-Fi standard

Warranty: 5 years


ModelQXH02-P3M8K-EUQXH02-P3M10K-EUQXH02-P3M12K-EU
Battery Input Data
Battery TypeLead-acid or Lithium-ion
Battery Voltage Range (V)40-60V
Max. Charging Current (A)160A200A240A
Max. Discharging Current (A)160A200A240A
Charging Strategy for Li-ion BatterySelf-adaption to BMS
Number of Battery Input1
PV String Input Data
Max. PV Input Power (W)10400W13000W15600W
Max. PV Input Voltage (V)800V
Start-up Voltage (V)160V
MPPT Voltage Range (V)200-650V
Rated PV Input Voltage (V)550V
Full Load DC Voltage Range350-650V
Max. Operating PV Input Current (A)13A + 13A26A + 13A
Max. Input Short-Circuit Current (A)17A + 17A34A + 17A
No. of MPPT2
No. of Strings per MPPT1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)80001000012000
Max. AC Input/Output Apparent Power (VA)88001100013200
Peak Power(off-grid)2 times of rated power, 10s
Rated AC Input/Output Current (A)12.16/11.615.21/14.518.25/17.4
Max. AC Input/Output Current (A)13.38/12.816.73/15.920.07/19.1
Max. Three-phase Unbalanced Output Current (A)18.18//17.422.72/21.727.27/26.1
Max. Continuous AC Passthrough (grid to load) (A)45
Max. Output Short Circuit Current (A)75
Peak Power (off-grid) (W)2 times of rated power, 10s
Power Factor Adjustment Range0.8 leading to 0.8 lagging
Output Frequency and Voltage50/60Hz; 3L+N+PE, 220/380V, 230/400V (three phase)
Grid TypeThree Phase
Total Current Harmonic Distortion THDi<3% (of nominal power)
DC Injection Current<0.5% In
Efficiency
Max. Efficiency97.6%
Euro Efficiency96.5%
MPPT Efficiency>99%
Equipment Protection
IntegratedPV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection,
PV String Input Reverse Polarity Protection, Insulation Resistor Detection,
Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
Surge Protection LevelTYPE II(DC), TYPE II(AC)
Over Voltage CategoryDC Type II / AC Type III
Interface
Battery Communication InterfaceRS485/CAN
Monitor ModeRS485/USB/CAN/Wifi/GPRS(optional)
General Data
Operating Temperature Range (°C)-40 to +60°C, >45°C Derating
Permissible Ambient Humidity0-95%
Permissible Altitude2000m
Noise (dB)<30
Ingress Protection(IP) RatingIP65
Inverter TopologyNon-Isolated
Size (WxHxD mm)340x560x257 mm (product)
680x440x340 mm (packaging)		430x629.9x256 mm (product)
760x530x340 mm (packaging)
Weight (kg)25.5 kg (product) / 29 kg (packaging)36 kg (product) / 40 kg (packaging)
Type of CoolingSmart Air Cooling
Warranty5 Years (10 Years Optional)
General Data
Grid CertificationVDE4105, IEC61727/62116, VDE0126, AS4777.2, CE10 21, EN50549-1, G98, G99C10-11, UNE217002, NBR16149/NBR16150
Safety/EMC StandardsIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

All specifications shown above are subject to change during products improving at any time without prior notice.
